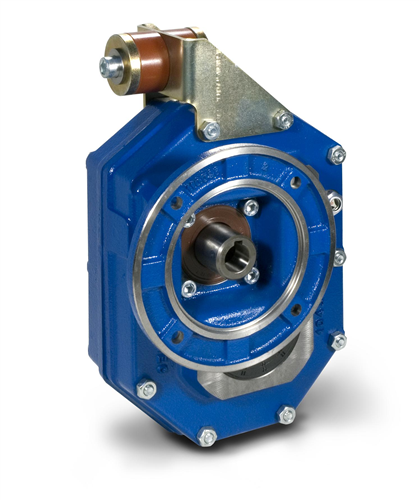

  M series - Shaft mounted Industrial gearbox

No Image
  • Available in 7 sizes with two reduction stages, shaft-mounting occurs by means of tension arm. A back-stop device can also be mounted if required by the application.
  • A projecting input shaft with key is available for mounting of pulleys for belt transmissions.
  • The helical spur gears are built in 20MnCr5 UNI7846 quench-hardened and case-hardened steel. The teeth of all gears are ground in order to ensure silent running.
  • The standard hollow output shaft made of steel is dimensioned accordingly to enhance performance in all different applications.
  • The rigid structure of the housing in engineering cast iron ensures superior resistance to stress. The single lubrication chamber guarantees excellent thermal dissipation.
