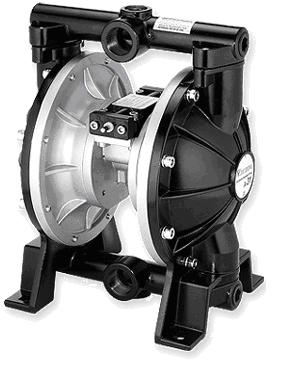

  Aluminium Air Pumps

No Image


Specifications

Aluminum Alloy
Pump Series

A-15
(3/8 Inch)

A-20
(1/2 Inch)

A-26
(3/4 Inch)

A-31
  (1 Inch)

A-40
(1-1/2 Inch)

A-50
 (2 Inch)

Max. Air Supply Pressure

6.8 bar

6.8 bar

6.8 bar

8.3 bar

8.3 bar

8.3 bar

Inlet / Outlet

3/8" NPT

1/2" NPT

3/4" NPT

1" NPT

1-1/2" NPT

2" NPT

Air Inlet

1/4" NPT

1/4" NPT

1/4" NPT

3/8" NPT

1/2" NPT

1/2" NPT

Min. Pressure for Starting Air Valve

1.2 bar

1.2 bar

1.2 bar

1.3 bar

1.3 bar

1.3 bar

Max Flow Rate

9.37 G.P.M.
(36 LPM)

12.76
G.P.M.
(48LPM)

14 .88
G.P.M.
(56 LPM)

45.19 G.P.M.
(180 LPM)

79.75
G.P.M.
(300 LPM)

154.84
G.P.M.
(580 LPM)

Max Speed

500 cpm

400 cpm

400 cpm

400 cpm





Flow of each cycle

0.08 L

0.15 L

0.15 L

0.45L





Max. Air Consumption

200NL/Min

350 NL/Min

380
NL/Min

960
NL/Min

1700
NL/min

2700
NL/min

Max. Size Solid

3/32"(2.4 mm)

3/32"(2.4 mm)

3/32"(2.4 mm)

1/8"(3.2 mm)

1/4" (6.4mm)

1/4" (6.4mm)

Suction Lift Capability

6.4m Primed ; 3.7m Dry

5.48m Primed / Dry

Weight of Pump

4 kg

4.5 kg

5 kg

9 kg

16 kg

29.5 kg

Dimensions
L x W x H (cm)

21 x 17 x 23

25 x 19 x 30

26x20x30

29x26x39

40x29x45

43x34x53

Air Pump Features Include:

  • There are no sliding or rotating parts, our air pumps have very good efficiency even with when pumping high adhesive liquids with low flow rate.
  • The pressure or the outlet of air pump can be regulated when the machine is running, there is no need to buy any high cost speed changeable motor or drive device.
  • No damage to our air pumps if running with no input for a long time.
  • The input pressure will never exceed the output pressure. No need to buy any pressure release device or by-pass.
  • The outlet of our air pumps can be shut down at any time if necessary. Pump will stop immediately and won't cause any power waste, heat production or any abrasion damage. If you want to start the pump again, just open the outlet of the pump and it will start automatically.
  • The efficiency of our pump will never be reduced by any abrasion.
  • Manual, remote or automatic control can be used to regulate the pumping output.
  • In normal conditions, our air pumps are suitable for explosion environments without the need for any explosion proof motor or controller. Our Air Pumps are explosion proof.
  • The flow rate regulation is controlled by air valve so no need for reflux device.
  • Our air pump diaphragms are of highest quality.
  • Our air pumps are small and light, and very  mobile.

Advantage Over other Types of Pumps Include:

  • Very simple to control
  • Efficiency is constant even when pressure or flow rate is changed
  • Allows idle running & suction head to 21" (6M)
  • Various pumping speed possible
  • Various pressures possible (to 125PSI)
  • No mechanical seal
  • Explosion proof
  • Water resistant
  • Portable
  • No rotating parts (or Internal bearings)
  • Idle running doesn't cause any damage to pump parts
  • No connectors needed
  • Pressure balance (no oil pressured valve)
  • Efficiency stays unchanged even if part abrasions occur

 Call our Australian Head Office Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au
for any enquiries or questions on all Air Pumps.
