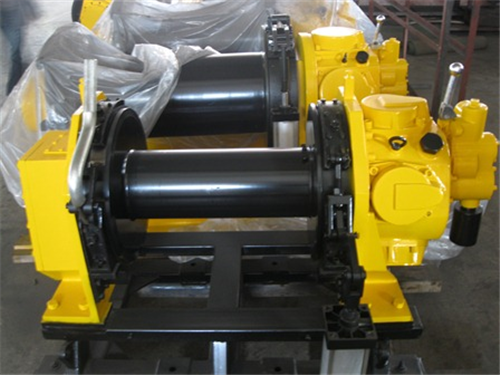

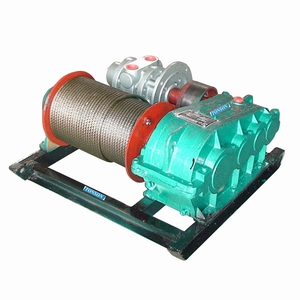

Air Winches
Air Winches for lifting and pulling in Offshore Applications or in Hazardous Environments
(Offshore, flammable, volatile, humid, dust, high temperature)
Capacity: 5, 10, 20, 50, 100kN
Specifications
|
Model
|
AK0.5T
|
AK1T
|
AK2T
|
AK5T
|
AK10T
|
| Line Pull (kN) |
5
|
10
|
20
|
50
|
100
|
| Ratio |
36.6
|
40.59
|
54.9
|
132.35
|
200.8
|
| Drum Diameter |
165 x 350
|
165 x 400
|
219 x 535
|
325 x 640
|
500 x 1000
|
| Drum Speed (RPM) |
38.8
|
35.47
|
26.23
|
8.1
|
4.8
|
| Rope DIA. | Max Rope DIA. (mm) |
50 | 100
|
70 | 160
|
80 | 180
|
0 | 200
|
0 | 300
|
| Rope Spec |
6 x 19
|
6 x 19
|
6 x 19
|
6 x 19
|
6 x 37
|
| Rope DIA. (mm) |
7.7
|
9.3
|
12.5
|
19.5
|
30
|
| Lifting Speed (m/min) |
22
|
22
|
22
|
9
|
9
|
| Dimension (L x W x H) |
710 x 620 x 340
|
750 x 740 x 400
|
980 x 880 x 530
|
1310 x 1140 x 800
|
1900 x 1650 x 890
|
| Mass (kg) |
110
|
200
|
400
|
780
|
2000
|
Specifications are subject to change without notice.
Standard Features:
- Rotary vane air motor or radial piston air motor
- Steel drum (not grooved) with cable fixing point at flange
- Two drum supports
- Working temperature of -10 to 45 degree Celsius
Winch Options:
- Alternative drum lengths
- Pressure Roller
- Drum guard
- Drum Divider Flange*
Control Options:
- Proportional remote control valve
- Air service units
Many Types and sizes of air winches for all applications inluding mining & marine available; Call our Australian Head Office Ph: 02 9607 4100 or email us: sales@tonson-motor.com.au for any enquiries or questions on all air winches.
