  M15 (RM310) - 7.5kW

No Image


No Image


No Image


No Image


No Image

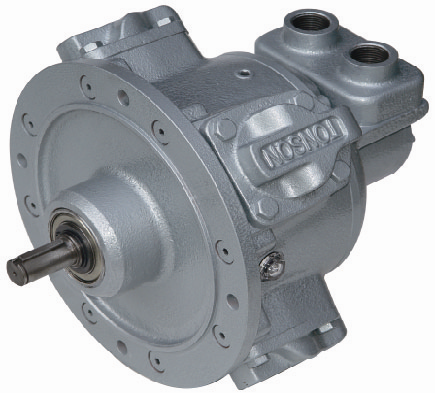

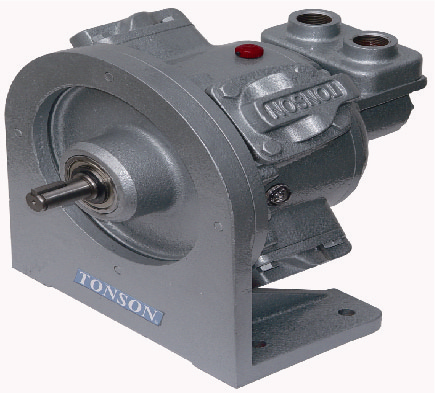

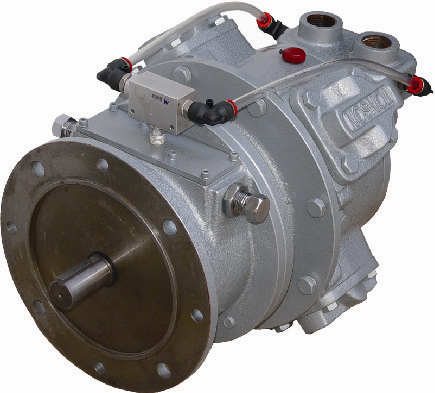

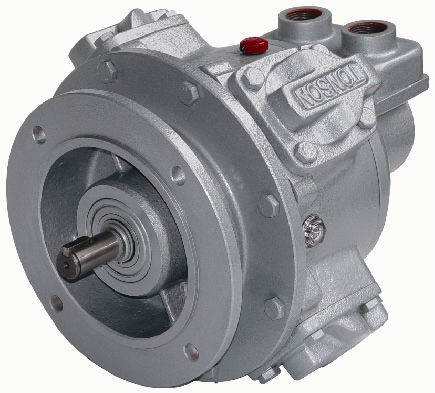

Our M15 Radial Piston Air Motor is manufactured to the highest quality and we can customise to suit your special requirements, various mount types and construction material. Tonson Australia specialise in design, manufacture and supply of Piston Air Motors with many years experience and knowledge into the Australian market. Many Options for gearbox types, ratios and mounting available.

Specifications

Model Code
Gear Ratio
Performance at Maximum Speed
Maximum Torque
Series
Type
Power
Torque
Speed
Air Consumption
Speed
Torque
HP
kW
Nm
lbin
RPM
l/min
CFM
RPM
Nm
lbin
M15
(310)
*
Standard
1:1
10.1
7.5
42
372
1800
9840
347
360
70
620
*B
with brake
**G3
with reducer

with brake and reducer

3:1
9.55
7.12
113
1004
647
129
189
1673
**G5
5:1
189
1673
358
71.6
315
2788
**G10
10:1
378
3346
203
40.6
630
5576
**G15
15:1
567
5018
136
27.2
945
8364
**G20
20:1
756
6691
86
17.2
1260
11152
**G30
30:1
1134
10037
57
11.4
1890
16728
**G40
40:1
1512
13382
45
9
2520
22304
**G50
50:1
1890
16728
36
7.2
3150
27880
**G60
60:1
2142
18958
32
6.4
3570
31597
**G80
80:1
2856
25278
21
4.2
4760
42130

2D and 3D Drawings Available For Our Air Motors!!

Piston Air Motors can easily operate under conditions unstuibale for Electric Motors and operate in exceptional environments conditions including:

  • Very high/low ambient temperatures
  • Radiated heat
  • Powdery/Dust
  • Humid
  • Corrosive
  • Flammable
  • Explosive

Suitable for Applications and various industries:

  • Paint
  • Ink
  • Acetone
  • Alcohol
  • Exuast/Ventilation
  • Underground Mines

Piston Air Motor Features:

  • Complete Safety
  • Cast Iron Construction
  • 100% Explosion-Proof
  • Speed confirms to load torque
  • Very high Efficiency
  • Low Air Consumption
  • Simple stepless speed control
  • Instant reversibility
  • Mounting Flexibility
  • Toleration of all different harsh environments

Piston Air Motor Optional Accessories:

  • IEC Flange Or Foot Mount
  • Parking Brake
  • Valve Controls
  • Remote Control valve
  • Hand Control Valve
  • Instant Reversibility
  • Filter - Lubricator - Regulator (FRL)
  • Pressure Gauges
  • Silencers

 Air Gearmotors

For applications where precise and variable turning power and speed is a requirement. Examples are bolt tensioning equipment or rock drilling rigs, precise lifting, lowering, traversing or turning. Unlike electric gearmotors, no chance of burn-out nor heat buildup with TONSON Air Motors. Direction of rotation is instantly reversible.
Precise Turning Power, High Torque Capacity


Brakes

For applications where positive braking is a requirement, a range of caliper brakes is offered.
These are designed to withstand full stall torque of the air motor. The brake consists of two spring applied shoes pressed against a central hub. The shoes are released by applying air pressure to the cylinder/piston assembly. The brake torque can be varied by adjustment of two spring adjusters but it is normally set so that a pilot pressure of 4 bar (60 PSI) will fully release it.


Valve Options (1/2", 3/4", 1", 1 1/4", 1 1/2", 2")

A range of bolt on Hand Control Valves and Remote Control Valves are available for use on all TONSON Piston Air Motors. Designed to completely eliminate all static friction, thereby reducing hysteresis effect and offering a very high degree of sensitive speed control. Suitable for applications where forward and reverse hand control is required, with spring centre to neutral position by a lever mechanism or controlled by air pilot signal.
Two control styles are manufactured:
i) Equal power and speed in both directions
ii) Biased to give a degree of control for hoisting applications.

Hand Control Valve

Custom Hand Control Valve

Remote Control Valve

One pilot port, 1/4" on each end. Caps may be positioned with port at top, bottom or either side. The pilot pressure range is between 1.4 bar (20 psi) and 4.8 bar (70 psi), increased pilot pressure gives increased speed.

Ordering Code

Applications

 Air Motor Accessories

Call TONSON on Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au
for any enquiries or questions on all Air Motors.
