  V16 - 7.1kW

No Image


No Image


No Image


No Image


No Image


Specifications

  Model
V16-F

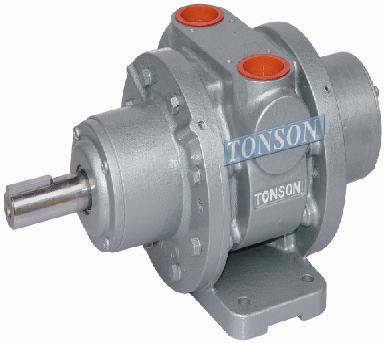

 V16-L
V16-LN
V16-N
V16-I
  Mounting
Face
Foot
Foot / 145TC
NEMA 145TC
IEC #72 D100
Performance at Maximum Speed
  Power (HP / kW)
9.5 / 7.08
 Torque (Nm / lbin)
34 / 300
  Speed (RPM)
2000
  Air Consumption (l/min / CFM)
7787 / 275
  Mass (kg / lb)
32.94 / 73
32.9 / 73
80 / 36
32.9 / 73
80 / 36

Performance at Maximum Torque
  Torque (Nm / lbin)
43 / 380
  Speed (RPM)
300

Performance when combined with our Gearbox:

Model Code
Gear Ratio
Performance at Maximum Speed
Maximum Torque
Series
Type
Power
Torque
Speed
Air Consumption
Speed
Torque
HP
kW
N·m
lb·in
RPM
l/min
CFM
RPM
N·m
lb·in
V16
(16AM)
*
Standard
1:1
9.5
7.08
34
300
2,000
7,787
275
300
43
380
*B
with brake
**G3

with reducer

with reducer /
brake
3:1
7
5.2
75
664
666
100
92.3
817
**G5
5:1
6.7
5
116
1027
400
60
143
1,266
**G10
10:1
6.7
5
238
2,106
200
30
293
2,593
**G20
20:1
6.5
4.85
472
4,177
100
15
585
5,177
**G100
100:1
4.3
3.21
1530
13541
20
3
1882
16,656

2D and 3D Drawings Available For Our Air Motors!!

Air Motors can easily operate under conditions which are not suitable for electric, hydraulic, stepper and servo motors:

  • Our Vane air motors are all reversible & Availabe in 8 Vanes
  • Dual output shafts are available
  • Gear reductions are available. Huge range of Reduction Gearboxes
  • Brakes are availabe as an option
  • Control valves are available

Vane Air motor applications are unlimited including:

  • Hoists / Winches
  • Hose Reels
  • Turntables
  • Conveyor Drives
  • Pump Drives
  • Automation Device
  • Choppers / Grinders
  • Food / Pharmacy Packaging
  • Ordering Code

Vane Air Motor Features Include:

  • Cast Iron Construction
  • 100% Explosion-Proof
  • Stalling Safety
  • Stepless Speed Control
  • Never Burn out
  • Self-Sealing & Cool Running
  • Smooth Start
  • Mounting Flexibility
  • All Plane Operation
  • Toleration of Environment

how to order

Working Fluid: Compressed Air                         Operating Pressure: 6 kg /cm2 (85 PSI)
Ambient Temperature: -10 ~ +120C Max.      Operating Pressure: 7 kg /cm2 (100 PSI)

Air Motors are designed to operate by compressed air and to be used with filiter, regulator and lubricator to improve perofrmance and longer life

Users should be responsible for determining suitability of the product for intended use and assuming all risk and liability whatsoever in connection therewith.

Specifications are subject to change without notice.

Vane Air Motor
Air Motor
Vane Air Motor
Air Motor Vane Air Motor

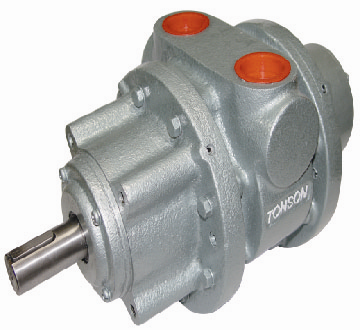

V16-F
V16-L

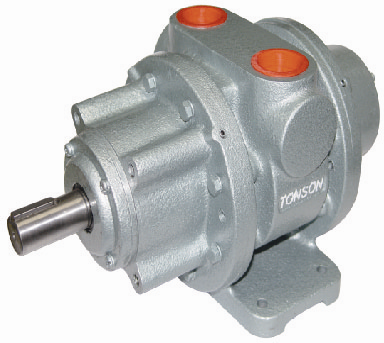

V16-LN

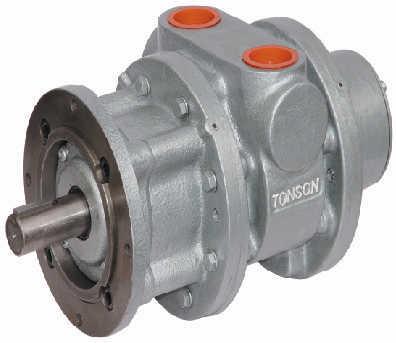

V16-N

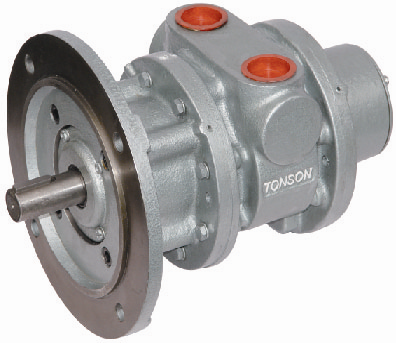

V16-I



 Air Motor Accessories

Call TONSON on Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au
for any enquiries or questions on all Air Motors.
