  Air Motors Technology   >   Vane Air Motors   >   V8 - 4.0kW


  V8 - 4.0kW

No Image


No Image


No Image


No Image


No Image


Specifications

  Model
V8-F
V8-L
V8-B
V8-N
V8-I
  Mounting
Face
Foot
Butterfly
NEMA 145TC
IEC #72 D90
Performance at Maximum Speed
  Power (HP / kW)
5.25 / 3.90
  Torque (Nm / lbin)
15 / 132
  Speed (RPM)  2500
  Torque (Nm / lbin)
21 / 185
  Air Consumption (Lpm/cfm)
4955 / 175

Performance when combined with our Gearbox:

Model Code
Gear Ratio
Performance at Maximum Speed
Maximum Torque
Series
Type
Power
Torque
Speed
Air Consumption
Speed
Torque
HP
kW
N·m
lb·in
RPM
l/min
CFM
RPM
N·m
lb·in
V8
(8AM)
*
Standard
1:1
5.25
3.9
15
132
2,500
4,955
175
300
21
185
*B
with brake
**G3

with reducer

with reducer /
brake
3:1
4.6
3.5
40
354
833
100
54
478
**G5
5:1
4.5
3.3
63
558
500
60
85
752
**G10
10:1
4.46
3.3
127
1,124
250
30
171
1,513
**G20
20:1
3.7
2.76
209
1,850
125
5,010
177
15
288
2,550
**G30
30:1
3.1
2.31
266
2,354
83
10
360
3,186
**G40
40:1
2.73
2
309
2,735
63
8
417
3,690
**G50
50:1
2.63
1.96
375
3,319
50
6
506
4,478
**G60
60:1
2.52
1.9
427
3,779
42
5
576
5,098


2D and 3D Drawings Available For Our Air Motors!!

Air Motors can easily operate under conditions which are not suitable for electric, hydraulic, stepper and servo motors:

  • Our Vane air motors are all reversible & Available in 8 Vanes
  • Dual output shafts are available
  • Gear reductions are available. Huge range of Reduction Gearboxes
  • Brakes are available as an option
  • Control valves are available


Vane Air mo
tor applications are unlimited:

  • Hoists / Winches
  • Hose Reels
  • Turntables
  • Conveyor Drives
  • Pump Drives
  • Automation Device
  • Choppers / Grinders
  • Food / Pharmacy Packaging



Vane Air Motor Features Include:

  • Cast Iron Construction
  • 100% Explosion-Proof
  • Stalling Safety
  • Stepless Speed Control
  • Never Burn out
  • Self-Sealing & Cool Running
  • Smooth Start
  • Mounting Flexibility
  • All Plane Operation
  • Toleration of Environment



Air Motor
Vane Air Motor
Air Motor
Vane Air Motor Air Motor

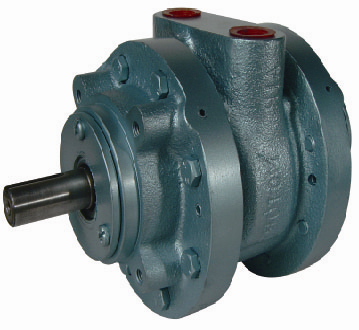

V8-F

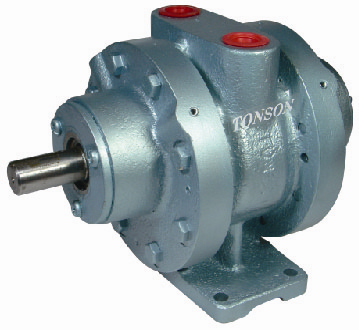

V8-L

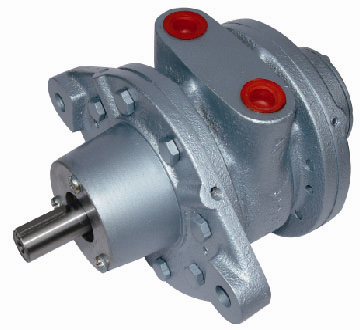

V8-B

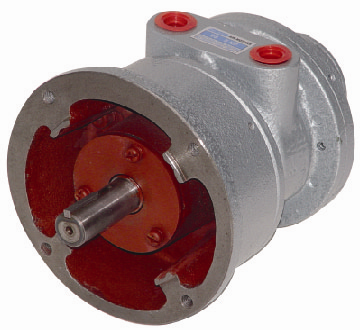

V8-N

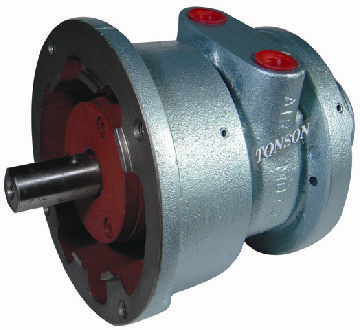

V8-I
