  V4 - 1.3kW

No Image


No Image


No Image


No Image


No Image


No Image


No Image


No Image


No Image


No Image


No Image


Specifications


Model
V4-F
V4-L
V4-LM
V4-L
V4-B
V4-N
V4-I
Mounting
Face
Foot
Foot
Face
Butterfly
NEMA 56C
IEC #72 D71
Performance at Maximum Speed
Power (HP / kW)
1.71 / 1.3
Torque (Nm / lbin)
4.10 / 36.29
Speed (RPM)
3000
Air Consumption (l/min / CFM)
2200 / 78
Mass (kg / lb)
3.9 / 8.58
4.3 / 9.46
5.2 / 11.44
4.6 / 10.12
4.1 / 9.02
5.1 /11.22
5.3 / 11.66
Performance at Maximum Torque
Torque (Nm / lbin)
6.3 / 56
Speed (RPM)
300


Performance when combined with Our Gearbox:

Model Code
Gear Ratio
Performance at Maximum Speed
Maximum Torque
Series
Type
Power
Torque
Speed
Air Consumption
Speed
Torque
HP
kW
N·m
lb·in
RPM
l/min
CFM
RPM
N·m
lb·in
V4
(4AM)
*
Standard
1:1
1.71
1.3
4.10
36
3,000
1,620
57
300
6.3
56
*B
with brake
**G3
with reducer

with reducer /
brake
3:1
1.3
0.94
9.20
81
1,000
1,700
60
100
14
124
**G5
5:1
1.3
0.94
15.4
136
600
60
24
212
**G10
10:1
1.3
0.94
31
274
300
30
48
425
**G15
15:1
1.27
0.90
45.2
400
200
20
72.3
640
**G20
20:1
1.17
0.87
55.0
487
150
2,000
71
15
84
740
**G30
30:1
1.1
0.79
75.5
668
100
10
116
1,027
**G40
40:1
0.95
0.71
90
800
75
7
142
1,255
**G50
50:1
0.88
0.66
105
929
60
6
161
1,425
**G60
60:1
0.83
0.61
117.5
1,040
50
5
185
1,640
**G70
70:1
0.83
0.61
137.8
1,220
42.9
4
207
1,832
**G80
80:1
0.83
0.61
157.7
1,396
37.5
3.5
237
2,097
**G100
100:1
0.83
0.61
205
1,814
30
3
308
2,726
**G120
120:1
0.83
0.61
236.5
2,093
25
2.5
355
3,142
**G140
140:1
0.83
0.61
285
2,522
21
2
428
3,788

2D and 3D Drawings Available For Our Air Motors!!

Air Motors can easily operate under conditions which are not suitable for electric, hydraulic, stepper and servo motors

  • Our Vane air motors are all reversible & Availabe in 8 Vanes
  • Dual output shafts are available
  • Gear reductions are available. Huge range of Reduction Gearboxes
  • Brakes are availabe as an option
  • Control valves are available

Vane Air motor applications are unlimited:

  • Hoists / Winches
  • Hose Reels
  • Turntables
  • Conveyor Drives
  • Pump Drives
  • Automation Device
  • Choppers / Grinders
  • Food / Pharmacy Packaging

Vane Air Motor Features Include:

  • Cast Iron Construction
  • 100% Explosion-Proof
  • Stalling Safety
  • Stepless Speed Control
  • Never Burn out
  • Self-Sealing & Cool Running
  • Smooth Start
  • Mounting Flexibility
  • All Plane Operation
  • Toleration of Environment



Air Motor
Vane Air Motor

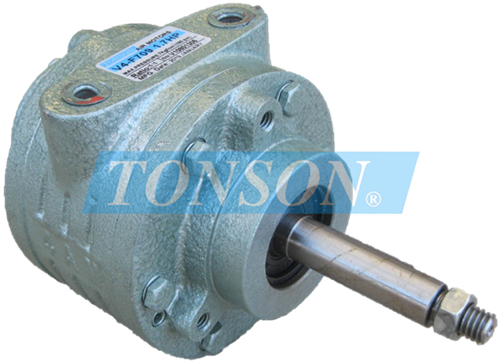

vane air motor for mixer
Extended shaft support.
Ideal for mixers
vane air motor for mixer
Extended shaft support.
Ideal for mixers
Air Motor
Vane Air Motor
  Air Motor

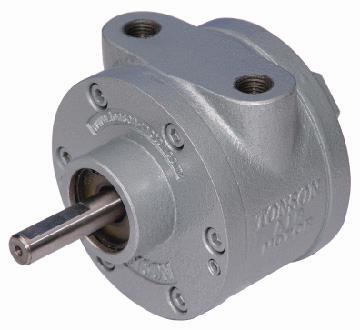

V4-F

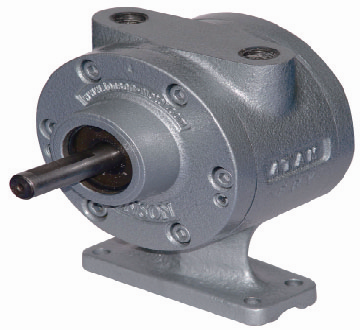

V4-L
V4-LM
V4-M

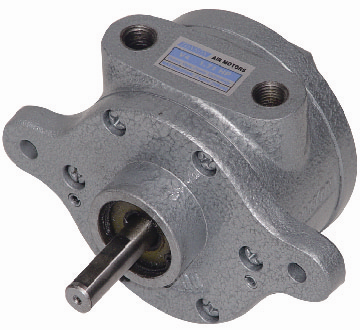

V4-B

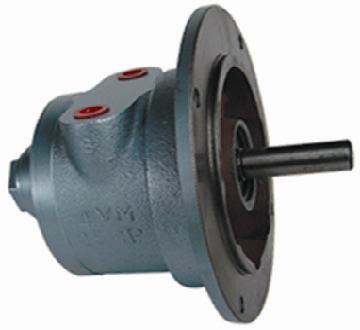

V4-N

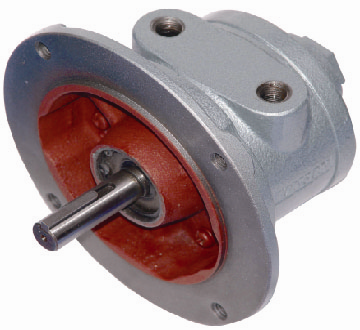

V4-I



 Air Motor Accessories

Call TONSON on Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au
for any enquiries or questions on all Air Motors.
