  Air Motors Technology   >   Vane Air Motors   >   VA1 - 0.37kW


  VA1 - 0.37kW

No Image


No Image


No Image


No Image


No Image


Specifications


Model

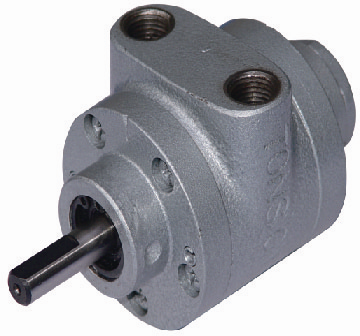

VA1-F

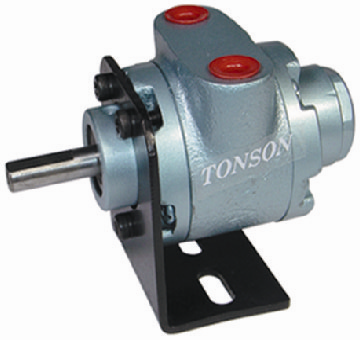

VA1-L
Mounting
Face
Foot
Performance at Maximum Speed
Power (HP / kW)
0.50 / 0.37
Torque (Nm / lbin)
0.60 / 5.31
Speed (RPM)
6000
Air Consumption (l/min / CFM)
760 / 27
Mass (kg / lb)
1 / 2.2
1.1/ 2.42
Performance at Maximum Torque
Torque (Nm / lbin)
6.01 / 0.68
Speed (RPM)
760

Performance when combined with Our Gearbox :
(Refer to our gearbox division for many gearbox options)

Model Code

Gear Ratio

Performance at Maximum Speed

Maximum Torque

Weight (kgs)

Series

Type

Power

Torque

Speed

Air Consumption

Speed

Torque

HP

kW

N·m

lb·in

RPM

l/min

CFM

RPM

N·m

VA1

*

Standard

1:1

0.5

0.37

0.6

5.31

6,000

760

27

500

0.68

 1

*G4.5

With Reducer

4.5:1

0.46

0.34

2.45

21.7

1,333

107

2.56

 2

*G20

20:1

0.46

0.34

10.8

95.9

300

24

11.8

 2.2

*G91

91:1

0.41

0.31

44.4

393

65.9

5.3

48.4

 2.5

*G410

410:1

0.2

0.15

98.4

871

14.6

1.2

109

 3.5


Air Motors can easily operate under conditions which are not suitable for electric, hydraulic, stepper and servo motors

  • Our Vane air motors are all reversible & Availabe in 8 Vanes
  • Dual output shafts are available
  • Gear reductions are available. Huge range of Reduction Gearboxes
  • Brakes are availabe as an option
  • Control valves are available

Vane Air motor applications are unlimited including:

  • Hoists / Winches
  • Hose Reels
  • Turntables
  • Conveyor Drives
  • Pump Drives
  • Automation Device
  • Choppers / Grinders
  • Food / Pharmacy Packaging

Vane Air Motor Features Include:

  • Cast Iron Construction
  • 100% Explosion-Proof
  • Stalling Safety
  • Stepless Speed Control
  • Never Burn out
  • Self-Sealing & Cool Running
  • Smooth Start
  • Mounting Flexibility
  • All Plane Operation
  • Toleration of Environment

Vane Air Motor
Air Motor
Vane Air Motor
Air Motor
V1-F
V1-L
With Reducer / Face Mount
  With Reducer / Foot Mount

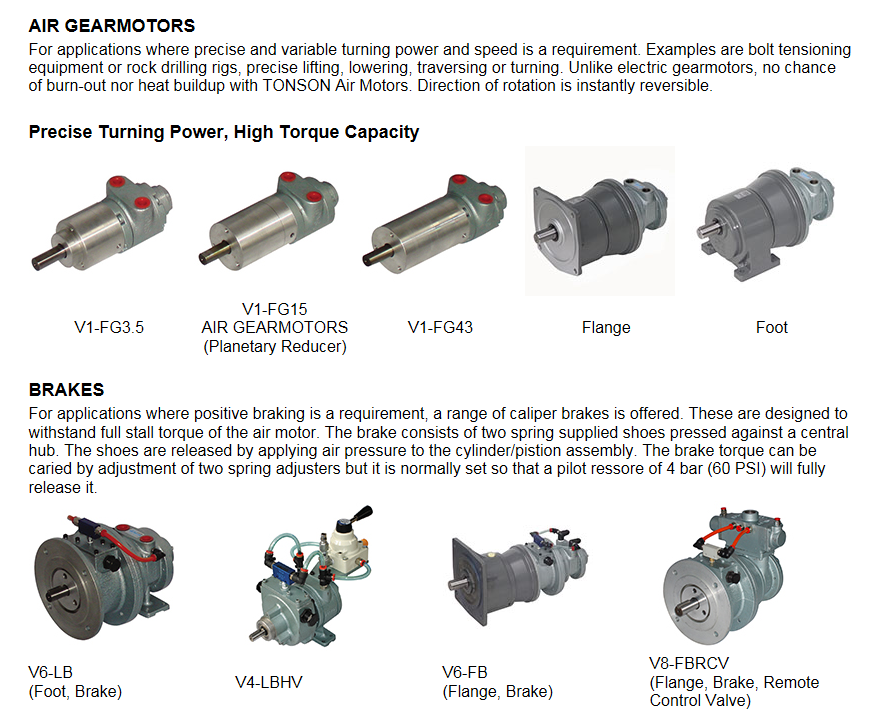

 Air Motor Accessories

Call TONSON on Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au
for any enquiries or questions on all Air Motors.
