  V1 - 0.33kW

No Image


No Image


No Image


No Image


No Image


No Image


Specifications

Model
V1-F
V1-L
Mounting
Face
Foot
Performance at Maximum Speed
Power (HP / kW)
0.45 / 0.33
Torque (Nm / lbin)
0.31 / 2.75
Speed (RPM)
10000
Air Consumption (l/min / CFM)
580 / 20.5
Mass (kg / lb)
0.8 / 1.76
0.9/ 1.98
Performance at Maximum Torque
Torque (Nm / lbin)
0.65 / 5.75
Speed (RPM)
650

Performance combines with our Gearboxes; complete drives available.

Model Code
Gear Ratio
Performance at Maximum Speed
Maximum Torque
Series
Type
Power
Torque
Speed
Air Consumption
Speed
Torque
HP
kW
N·m
lb·in
RPM
l/min
CFM
RPM
N·m
lb·in
V1
(1AM)
*
Standard
1:1
0.45
0.33
0.31
2.75
10,000
590
21
650
0.65
5.75
*G3.5
with reducer
4.5:1
0.38
0.28
1.20
10.6
2,222
156
1.15
10.2
*G15
20:1
0.38
0.28
5.43
48.1
500
25
10.9
96.1
*G43
91:1
0.37
0.28
23.9
212
110
4
25.3
224
*G150
410:1
0.18
0.14
53.0
469
24
2
57.3
507

Air Motors can easily operate under conditions which are not suitable for electric, hydraulic, stepper and servo motors

  • Our Vane air motors are all reversible & Availabe in 8 Vanes
  • Dual output shafts are available
  • Gear reductions are available. Huge range of Reduction Gearboxes
  • Brakes are availabe as an option
  • Control valves are available

Vane Air motor applications are unlimited:

  • Hoists / Winches
  • Hose Reels
  • Turntables
  • Conveyor Drives
  • Pump Drives
  • Automation Device
  • Choppers / Grinders
  • Food / Pharmacy Packaging

Vane Air Motor Features Include:

  • Cast Iron Construction
  • 100% Explosion-Proof
  • Stalling Safety
  • Stepless Speed Control
  • Never Burn out
  • Self-Sealing & Cool Running
  • Smooth Start
  • Mounting Flexibility
  • All Plane Operation
  • Toleration of Environment




Vane Air Motor
Air Motor
Vane Air Motor
Air Motor
V1-F

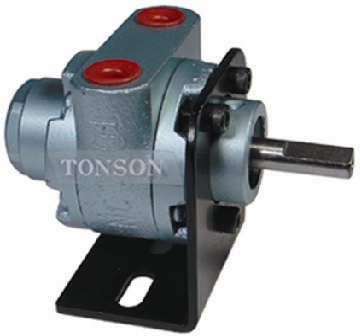

V1-L
With Reducer / Face Mount
  With Reducer / Foot Mount



 Air Motor Accessories

Call TONSON on Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au
for any enquiries or questions on all Air Motors.
