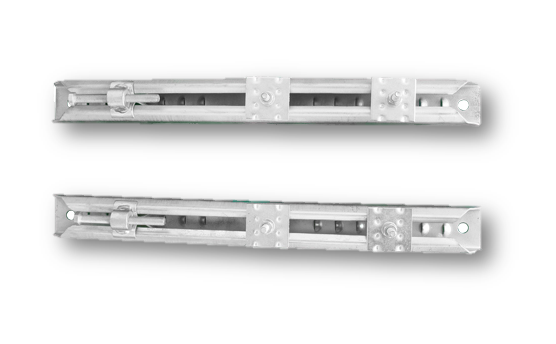

Slide Rails
Slide Rails has a uniquie design and powerful weight bearing. It can be widely used in fixing and adjustment of many different kinds of motors.
Characterisitics: Made of high quality steel with pressing and processing.
|

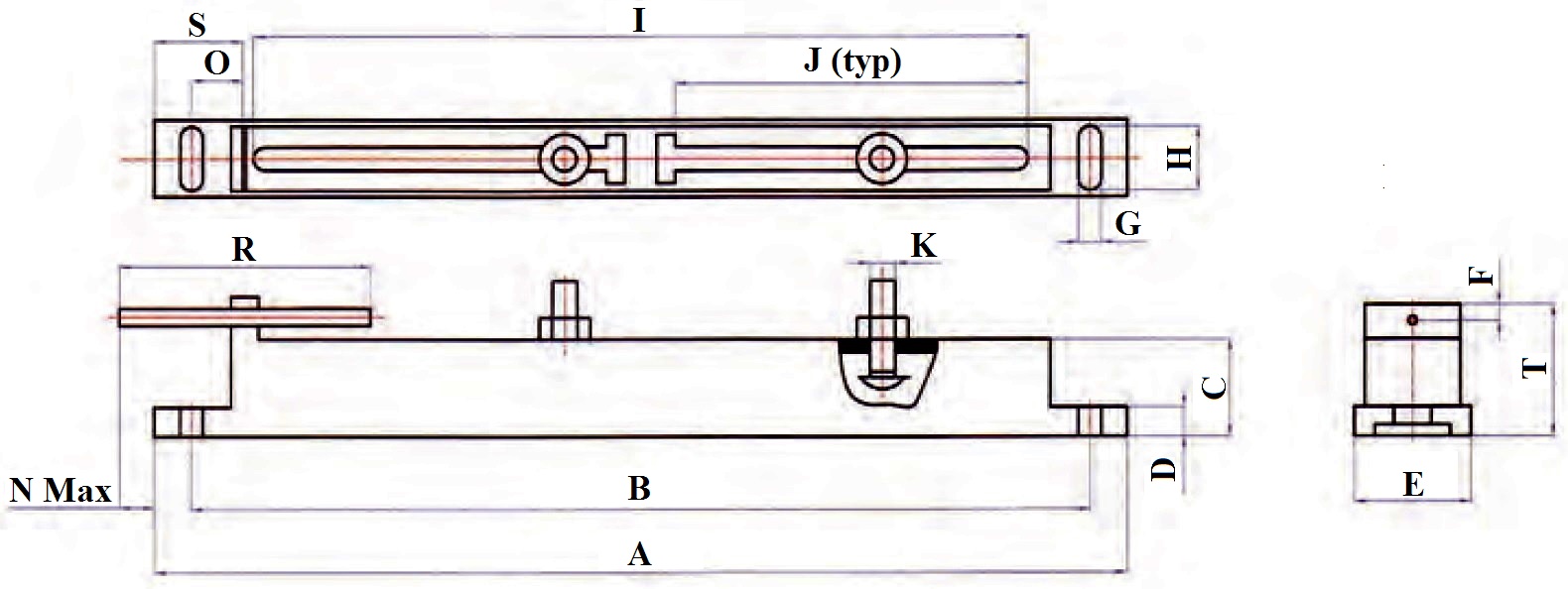

Frame Size
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
M
|
N
|
O |
R |
S |
T |
Weight KGs |
|
080-090
|
380
|
328
|
30
|
15
|
48
|
10
|
15
|
25
|
245
|
95
|
8
|
75
|
25
|
40 |
145 |
65 |
50 |
3 |
|
100-132
|
475
|
425 |
37 |
19 |
70 |
10 |
14 |
35 |
340 |
150 |
10 |
135 |
26 |
42 |
200 |
68 |
62 |
8.5 |
|
160-180
|
567
|
515 |
48 |
19 |
72 |
11 |
18 |
35 |
380 |
162 |
12 |
115 |
28 |
57 |
200 |
85 |
70 |
10 |
|
220-225
|
790
|
780 |
60 |
32 |
92 |
18 |
20 |
20 |
610 |
285 |
16 |
200 |
30 |
60 |
290 |
90 |
92 |
22 |
|
250-280
|
945
|
870 |
70 |
38 |
105 |
16 |
21 |
21 |
725 |
305 |
20 |
240 |
35 |
70 |
380 |
105 |
110 |
40 |
|
315-355
|
1220 |
1115 |
125 |
40 |
122 |
22 |
30 |
30 |
920 |
420 |
24 |
285 |
50 |
105 |
450 |
155 |
170 |
105 |
Call our Australian Head Office Ph: 02 9607 4100 or email us: sales@samt.com.au for any enquiries or questions on all Slide Rails.
