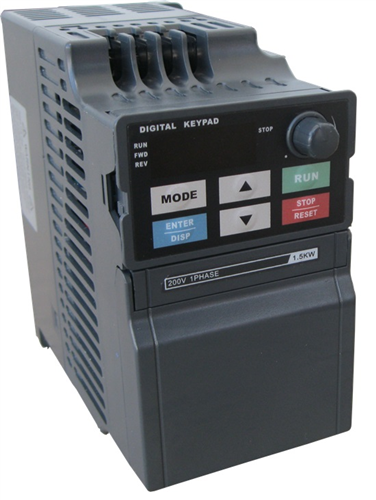

  SS900S Series Mini Inverter

No Image


Compact Size design, small appearance & easy to operate.

Mainly used in;
Food Machinery-Feeder, Mixer, Bag Filling Machines, Pastry forming machines, etc.
Woodworking Machinery-Polishing Machine, Grinding Machine, Carving Machine, etc.
Textile Machinery-Winding Machines, Fabric Inspection machines, etc.
Packaging Machinery-Liquid Filling Machines, Pharmaceutical filling machines, etc.
Others: Stone Cutting Machine, Blowing Machine, Water-Pump, Conveyor Belts, etc.

 Product Specifications

Items
SS900S
Power
Supply
Rated Voltage
Frequency
One-phase/Three-phase AC 220V 50/60Hz;
Three-phase AC380V 50/60Hz
Voltage Range
220V: 170V~240V; 380V: 330V~440V
Output
Voltage Range
220V: 0~220V; 380V: 0~380V
Frequency
Range
0.10~400.00Hz
Control Method
V/F control, Space vector control.
Indication
Operating status/Alarm definition/interactive guidance: eg, frequency setting, the output frequency/current, DC bus voltage, the temperature and so on.
Control Specifications
Output
Frequency
Range
0.10~400.00Hz
Frequency
Setting
Resolution
Digital input : 0.1 Hz, analog input: 0.1% of maximum output frequency
Control
Specifications
Output
Frequency
Accuracy
0.1Hz
V/F Control
Setting V/F curve to satisfy various load requirements.
Torque Control
Auto increase: auto raise torque by loading condition; Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional
Input Terminal
Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/ deceleration speed switch, UP/DOWN function and emergency stop and other functions
Multifunctional
Output Terminal
2 multi-function output terminals for displaying of running, zerospeed, counter, external abnormity program operation and operation and other information and warnings.
Acceleration/
Deceleration
Time Setting
0~999.9s acceleration/deceleration time can be set individually
Other
Functions
PID Control
Built-in PID Control
RS485
Standard RS485 Communication Function (MODBUS)
Frequency
Setting
Analog input: 0 to 10V, 4 to 20mA can be selected;
Digital input: Input using the same dial of the operation panel or
RS485 or UP/DOWN.
Multi-speed
Six multifunction input terminals, 15 section speed can be set
Automatic
Voltage
Regulation
Automatic voltage regulation function can be selected
Counter
Built-in 2 group of counters
Protection/
Warning
Function
Overload
150%, 60 second (Constant torque)
Over Voltage
Over voltage protection can be set.
Under Voltage
Under voltage protection can be set.
Other
Protections
Overheat, Output shortcircuit, over current, parameter lock and so on.
Environment
Ambient
Temperature
-10°C to 40°C (non-freezing)
Ambient
Humidity
Max. 95% (non-condensing)
Altitude
Lower than 1000m
Vibration
Max. 0.5G
Structure
Cooling Mode
Forced air cooling
Protective
Structure
IP 20
Installation
Mode
Wall-mounted

Specifications

Model
Power Output
(KW)
Capacity
(KVA)
Output Current
(A)
Overload Capacity
(60s) (A)
Applicable
Motor (KW)
1PH AC220V ±15% 50/60Hz
SS900-0.4kW-1PH-20
0.4
1
2.2
3.75
0.4
SS900-0.75kW-1PH-20
0.75
2
5
7.5
0.75
SS900-1.5kW-1PH-20
1.5
2.8
7
10.5
1.5
3PH AC380V ±15% 50/60Hz
SS900-0.75kW-3PH-20
0.75
2.2
2.7
4.05
0.75
SS900-1.5kW-3PH-20
1.5
3.2
4
6
1.5
SS900-2.2kW-3PH-20
2.2
4
5
7.5
2.2
SS900-3.7kW-3PH-20
3.7
6.8
8.6
12.9
3.7
SS900-5.5kW-3PH-20
5.5
10
12.5
18.75
5.5
SS900-7.5kW-3PH-20
7.5
14
17.5
21
7.5
SS900-11kW-3PH-20
11
19
24
36
11
SS900-15kW-3PH-20
15
26
33
45
15
SS900-18.5kW-3PH-20
18.5
32
40
60
18.5
SS900-22kW-3PH-20
22
37
47
70.5
22
SS900-30kW-3PH-20
30
52
65
97.5
30
SS900-37kW-3PH-20
37
64
80
120
37

 Dimensions




Model
Outline dimension (mm)
Installation Size (mm)
W
H
D
A
B
Ød
SS900-0.4kW-1PH-20 –-
SS900-1.5kW-1PH-20
72
142
152
132.7
62.7
5
SS900-2.2kW-1PH-20 –
S900-3.7kW-1PH-20
100
183
143
173.0
90.0
5
SS900-5.5kW-1PH-20 –
S900-7.5kW-1PH-20
130
260
184
250.0
120.0
5
SS900-0.4kW-3PH-20 –
SS900-2.2kW-3PH-20
72
142
152
132.7
62.7
5
SS900-3.7kW-3PH-20
SS900-5.5kW-3PH-20
100
183
143
173.0
90.0
5
SS900-7.5kW-3PH-20
SS900-11kW-3PH-20
130
260
184
250.0
120.0
5
SS900-15kW-3PH-20
SS900-18.5kW-3PH-20
SS900-22kW-3PH-20
195
280
179
266.0
182.5
7
SS900-30kW-3PH-20
245
425
193
410.0
180.0
7


 SS900S Typical Wiring Diagram
