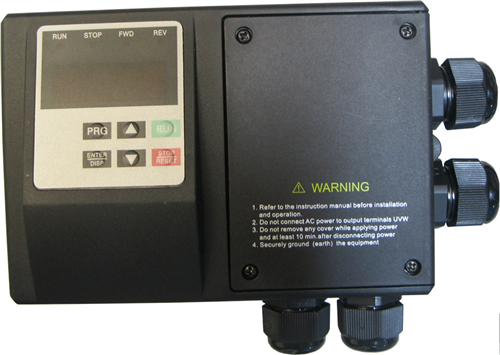

  SS2100S IP65 Series Frequency Inverter

No Image


Advantages



 Product Specifications



Items
SS2100S
Power
Supply
Rated Voltage
Frequency
1PH 220V 50/60Hz;
3PH 380V 50/60Hz
Voltage Range
220V: 170V--240V
380V: 330V--440V
Output
Voltage Range
220V: 0--220V
380V: 0--380V
Frequency
Range
0.10~400.00Hz
Control Method
V/F control, Space vector control.
Indication
Operating status/Alarm definition/interactive guidance: eg, frequency setting, the output frequency/current, DC bus voltage, the temperature and so on.
Control
Specifications
Output
Frequency
Range
0.10~400.00Hz
Frequency
Setting
Resolution
Digital input : 0.1 Hz, analog input: 0.1% of maximum output frequency
Output
Frequency
Accuracy
0.1Hz
V/F Control
Setting V/F curve to satisfy various load requirements.
Torque Control
Auto increase: auto raise torque by loading condition; Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional
Input Terminal
Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/ deceleration speed switch, UP/DOWN function and emergency stop and other functions
Multifunctional
Output Terminal
2 multi-function output terminals for displaying of running, zerospeed, counter, external abnormity program operation and operation and other information and warnings.
Acceleration/
Deceleration
Time Setting
0~999.9s acceleration/deceleration time can be set individually
Other
Functions
PID Control
Built-in PID Control
RS485
Standard RS485 Communication Function (MODBUS)
Frequency
Setting
Analog input: 0 to 10V, 4 to 20mA can be selected;
Digital input: Input using the same dial of the operation panel or
RS485 or UP/DOWN.
Multi-speed
Six multifunction input terminals, 15 section speed can be set
Automatic
Voltage
Regulation
Automatic voltage regulation function can be selected
Counter
Built-in 2 group of counters
Protection/
Warning
Function
Overload
150%, 60 second (Constant torque)
Over Voltage
Over voltage protection can be set.
Under Voltage
Under voltage protection can be set.
Other
Protections
Overheat, Output shortcircuit, over current, parameter lock and so on.
Environment
Ambient
Temperature
-10°C to 40°C (non-freezing)
Ambient
Humidity
Max. 95% (non-condensing)
Altitude
Lower than 1000m
Vibration
Max. 0.5G
Structure
Cooling Mode
Forced air cooling or Natural cooling
Protective
Structure
IP 65
Installation
Mode
Wall-mounted

 Specifications

Model
Suitable Motor
Output Current
Assembly Dimension (mm)
W
H
D
A
B
b
SS2100-0.75-1Ph-IP65
0.75KW
5
188
122
134
105
178
M4
SS2100-1.5-1Ph-IP65
1.5KW
7
SS2100-2.2-1Ph-IP65
2.2KW
11
SS2100-1.75-3Ph-IP65
0.75KW
2.7
188
122
134
105
178
M4
SS2100-1.5-3Ph-IP65
1.5KW
4
SS2100-2.2-3Ph-IP65
2.2KW
5
SS2100-3.7-3Ph-IP65
3.7KW
8.6
235
154
179
129
225
M4
SS2100-5.5-3Ph-IP65
5.5KW
12.5
SS2100-7.5-3Ph-IP65
7.5KW
17.5
SS2100-11-3Ph-IP65
11KW
24

   Dimensions


SS2100S Typical Wiring Diagram
 (1) 0.75--2.2kw

 (2) 3.7--11kW
