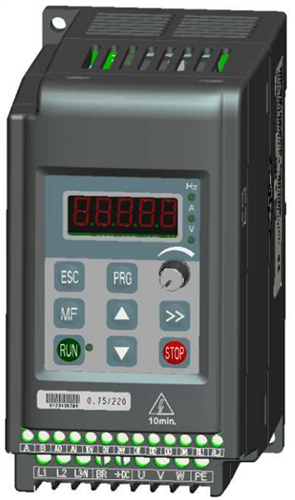

  SHD71 Series

No Image




How to order

 Product Specifications



Input
Power
Input Voltage U­in
200V (-10%)~240V (+10%)     1Ph-3Ph
380V (-10%)~480V (+10%)     3Ph
Input Frequency
50Hz/60Hz
Maximum Supply Imbalance
≤3%
Power
Output
Output Voltage
0V ~ Uin
Output Frequency
0Hz~300Hz
Main
Performance
Function
Voltage Control
V/F, open loop vector control
Switching Frequency
1kHz ~ 15kHz
Adjust Speed Range
Open loop vector – 1:100, V/F mode -1:50
Start Torque
0.5Hz: 100% rated torque, 1Hz: 150% rated torque
Torque Accuracy
7%
Torque Ripple
≤2%
Speed Accuracy
≤1%n0 (Under the rated operating conditions)
Reference Resolution
Digit–0.01Hz, Analogue–0.1%xMaximum Frequency
Accel & Decel. Rate
0.1s~3600s
Voltage Boost
0.1%-30.0%
Overload
150% rated output current, 1 minute
V/F
4 types: V/F(user can program) and ramp(2.0 Power,1.7 power,1.2 power)
DC Braking
Injection Frequency: 0.0%~20.0% maximum frequency
Injection Current: 0.0%~300.0% rated current
Injection time: 0.00s~60.00s
Dynamic Braking
Brake Rate: 0.0% ~ 100.0%
Jog
Jog Frequency: 0.00Hz ~ 50.00Hz
Jog Interval Time: 0.1s ~ 60.0s
Preset
8 Preset Speeds (Decided by control terminals)
AVR
Maintain the rated output voltage when the input power supply voltage changed.
Special
Performance
Function
Internal PID
Easy to form a closed-loop control system
Control
Terminals
Reference Source
Digit: Keypad, motorized pot (E-Pot), PID, comms.
Analogue: AI: 0V   10V, 0(4) mA ~ 20mA; Keypad potentiometer
Operation Mode
Keypad, Control terminal, Serial Comms.
Digital Input Terminals
Dl1 ~Dl4: Programmable terminals
Analogue Input Terminal
AI: Programmable terminal, 0V 10V, 0(4) mA~20mA, can be used as digital input terminal by programming
Analogue Output terminal
AO: Programmable terminal, 0V 10V, can be used as digital output terminal by programming
Status Relay
1 programmable relay, contactor data:
AC250V/2A (COS
ø=1); AC250V/1A (COSø=0.4); DC30V/1A
Comms.
Connectors
Terminals A, B
Protocol
Modbus  RTU
Environment
Altitude
1000m rated; 1000m~3000m, 1% current derating
Operating Temperature
-10°C~+40°C
Maximum Humidity
<90%RH, no-condensing
Vibration
<5.9m/s2 (0.6g)
Storage Temperature
-40°C~+70°C
Running Environment
Indoor, non-flammable, no corrosive gasses, no contamination with electrically conductive material, avoid dust which may restrict the fan.
Protection
Output shortage, over current, over load, over voltage, under voltage, phase loss, over heat (heatsink and junction), external trip, etc.
Efficiency
89%
Mounting Method
Surface Mounting, DIN rail
Enclosure
IP00, IP20 (by adding optional device)
Cooling Method
0.4kW model is nature cool, others are forced air cool



Specifications



Model Name
Motor Power
(kW)
Rated Input Current
(A)
Rated Current Output
(A)
Drive Power Size
(kVA)
1PH AC200-220V ±10% 50/60Hz
SHD71201D00040
0.4
5.8/3.5
2.8
1.1
SHD71201D00075
0.75
11.3/6.3
4.5
1.7
SHD71201D00100
1.1
12.3/7.5
5.5
2.1
SHD71201D00150
1.5
20.5/11.3
8
3.0
3PH AC380-480V ±10% 50/60Hz
SHD71401D00040
0.4
2.8
1.5
1.0
SHD71401D00075
0.75
3.6
2.5
1.7
SHD71401D00150
1.5
5.7
4.2
2.8



Dimensions
