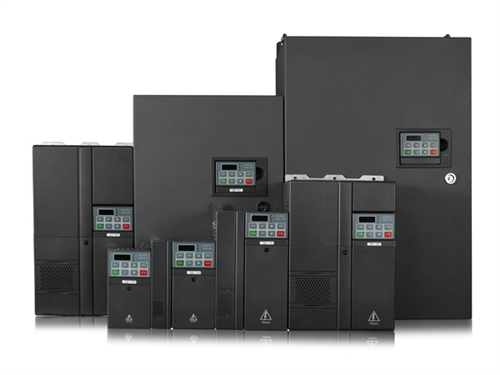

  SHD700 Series

No Image


How to order



Product Specifications

Input
Power
Input Voltage U­in
200V (-10%)~240V (+10%)     1Ph-3Ph
380V (-10%)~480V (+10%)     3Ph
500V (-10%)~690V (+10%)     3Ph
Input Frequency
50Hz/60Hz(±2Hz)
Maximum Supply Imbalance
≤3%
Power
Output
Output Voltage
0V ~ Uin
Output Frequency
0Hz~300Hz
Main
Performance
Function
Voltage Control
V/F, open loop vector control
Switching Frequency
1kHz ~ 15kHz
Adjust Speed Range
Open loop vector – 1:100, V/F mode -1:50
Start Torque
0.5Hz: 100% rated torque, 1Hz: 150% rated torque
Torque Accuracy
7%
Reference Resolution
Digit–0.01Hz, Analogue–0.1%xMaximum Frequency
Accel & Decel. Rate
0.1s~3600min
Voltage Boost
0.1%-30.0%
Overload
E,G type: 150% rated output current, 1 minute
P type: 110% rated output current, 1 minute
V/F
4 types: V/F(user can program) and ramp(2.0 Power,1.7 power,1.2 power)
DC Injection
Injection Frequency: 0.0%~20.0% maximum frequency
Injection Current: 0.0%~300.0% rated current
Injection time: 0.00s~60.00s
Dynamic Braking
The ultilization rate of Dynamic Braking : 0.0% ~ 100.0%
Jog
Jog Frequency: 0.00Hz ~ Maximum frequency
Jog Acceleration rate: 0.1s~600.0s
Jog Interval Time: 0.1s ~ 600.0s
Preset
16 Preset Speeds (Decided by control terminals)
AVR
Maintain the rated output voltage when the input power supply voltage changed.
Special
Performance
Function
Textile
For textile machines control
Simple PLC
Onboard PLC
Length Control
Winding Control
PID Control
Process control (Reference close loop control)
Advanced Function Blocks
2 Logic Control Blocks
1 Binary Selector
2 Threshold Control Blocks
3 Variable Selectors
Control
Terminals
Reference Source
Digit: Keypad, motorized pot (E-Pot), Pulse, comms.
Analogue: AI1: 0V~10V, 0(4) mA ~ 20mA;
                   Al2: 0V~10V
Operation Mode
Keypad, Control terminal, Serial Comms.
Digital Input Terminals
Dl1 ~Dl7: Programmable terminals and DI6 can be set as pulse input, 0Hz~60Hz; DI7 can be high frequency input (1Hz~50.0kHz) and output PWM
Digital Output Terminals
DO1~DO2: Programmable terminals, Max. output current: 50mA, DO2 can be the terminal to output pulse (0.1kHz~50.0kHz), and output PWM
Analogue Output terminal
AO1: Programmable terminal, 0V~10V
Status Relay
2 programmable relay, contactor data:
AC250V/2A (COS
ø=1); AC250V/1A (COSø=0.4); DC30V/1A
Comms.
Connectors
2 Terminals (A&B) and RJ45 Port
Protocol
Modbus  RTU
Environment
Altitude
1000m rated; 1000m~3000m, 1% current derating per 100m
Operating Temperature
-10°C~+40°C
Maximum Humidity
<90%RH, no-condensing
Vibration
<5.9m/s2 (0.6g)
Storage Temperature
-40°C~+70°C
Running Environment
Indoor, non-flammable, no corrosive gasses, no contamination with electrically conductive material, avoid dust which may restrict the fan.
Optional Module
LCD Keypad, SHDOM-232, SHDOM-USB, Profibus module, Keypad Pallet, SHDSOFT (PcTools), etc.
Protection
Output shortage, over current, over load, over voltage, under voltage, phase loss, over heat (heatsink and junction), external trip, etc.
Efficiency
1.5kW and below: ≥89%
2.2kW~22kW: 93%
30kW and above: 95%
Mounting Method
Surface Mounting, Through hole, Cubicle Standing
Enclosure
IP20, IP21 (by adding optional device)
Cooling Method
220V/0.4kW model is nature cool, others are forced air cool





Specifications

 220V 380V

  690V





Dimensions







SHD700s Typical Wiring Diagram
