  Explosion-Proof Motor (LV)

No Image


Scope of Production

Rated Power (kW): 0.09 - 750
No. of Poles: 2P - 12P (speed 2900rpm - 500rpm)
Ratings: 380~415 Volts 50 Hz (60Hz and other voltages are available up to 1100V possible)
Speed: 2900rpm - 500rpm

Mountings: Face / Foot / Flange IEC
Standard Casting: Cast Iron Or Alloy

Description

When an electric device is used in a location where explosive gas or steam is present, such as a petrochemical plant, an explosion-proof motor must be used to prevent the possibility of an explosion. Hyosung’s explosion-proof motor ensures the safety required by domestic and international standards; Hyosung also maintains the relevant certificates. Short lead times and Affordable prices from Korean and One of Asia's Largest Electric Manufacturers. ASK us today for all your explosion proof Electric Motors. Conforms to MEPS efficiency standards and IEC Ex Certificates available.

Features

- International explosion-proof certificates (UL, ATEX, IEC Ex, etc.)
- Reliable insulation system that feature excellent operation
- Solid structure that endures internal explosion
- High safety standards required by petrochemical plants
- Check our customised motor range for multispeed motors
- IP55 protection and others IP66 IP67 possible
- Various Mounts possible including B3, B5, B35 & V1
- Temperature class: T4 up to T6
- Explosive Gas -  Group 1 and IIC
- Metric Frame supplied as standard. Nema Frame also available
- C face flanges can be supplied
- Terminal box can be mounted at various positions top, side etc.
- Can be used with VVVF drive application & VSD Use.
- Low Noise
- Australian and Korean Factory Sales and Technical Support
- Buy from trusted one of Asia's and largest Korean Electric Motor Manufacturer, short lead times
- Ask us about customised requirements, specifications and colours direct from our Korean factory
- Conforms to MEPS efficiency standards and IEC Ex Certificates available for all motors
- All Motors are thoroughly tested to ensure their functionality before shipment.
- Our explosion-proof motors Ex d, Ex de have been designed according to European standard Cenelec EN 60079‑0:2006; EN 60079-1:2004; EN 61241-1:2004; EN 61241-0:2006 and for this reason they are suitable for hazardous areas as per EN 60079- 10.14.17 standard. Also complies with all the European standards that Cenelec includes:

IEC 60034-1/2/5/6/7/8/9/12, IEC 60072, IEC 60079-0/1/7, IEC 61241-0, EN 60034-1/2/5/6/7, HD 53 8, EN 60034-9/12 and HD 231.

- Our explosion-proof motors are manufactured in compliance with ATEX standards provided with this mark


- Our explosion-proof motors has been certified for explosion group II A - IIB - IIC and reproduce the following identification marks:

GAS : ZONE 1 e 2 II 2G Ex d, Ex de IIB or IIC

The standard EN 60079-0:2006 and EN 60079-1:2004,state the type of gases and vapours included in each explosion group.

Ex de motors = flameproof enclosure “d” for motor frame and increased safety “e” for terminal box.

DUST: ZONE 21 e 22 II 2D IP66 T 85 °C, T 100° C, T 135 °C, T 155 °C according with standard EN 60079-7:2007.

- Our explosion-proof motors are certified for the temperature classes T3 - T4 - T5 (some T6). The ATEX standard settles the correlation between temperature class and maximum motor surface temperature, according to the following table:






Other Hazardous Motors available Include:

  • Ex e - increased safety
  • DIP (dust ignition proof)
  • Ex n - non-sparking

Suitable for various hazardous industries including:

  • Coal Mining
  • Petrochemical Plants
  • Automation devices
  • Grain Handling
  • Chemical Plants
  • Water Treatment Plants

Hazardous AC Electric Motor Features:

  • Quality Design
  • Cast Iron Construction
  • Mounting flexibility - Foot / Flange various positions
  • Steel terminal box and capacitor
  • High quality and meets stringent requirements
  • IEC Ex & ATEX & ISO9001 Standards
  • Motors suits non-sparking, dust ignition proof, Flame proof
  • Explosive increased safety

Hazardous Ac Motor Optional Services:

  • Explosive proof IEC Brakes Between Motor and Gearbox
  • Slide rails
  • Industrial gearboxes - All Cast Iron Explosion Proof refer to our gearbox Section
  • Couplings
  • Chain drives
  • Power Transmission requirement
  • Complete Baseplate mounted drives including Motors, Couplings & Gearboxes

SAMT and HYOSUNG have joined forces to supply the Australian Industry with explosion proof electric motors at competitive prices with short lead times. Contact us today for all your electric motor requirements.

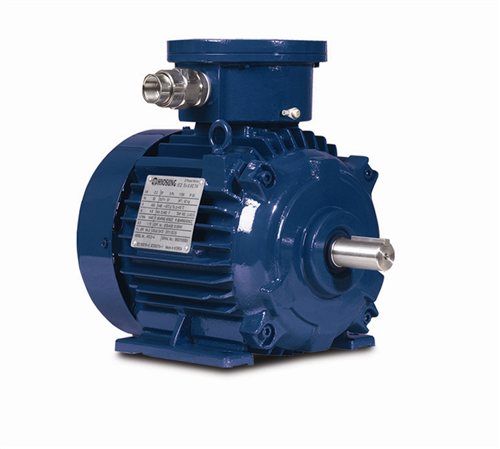

                                                        Explosion Proof Electric Motor Ex d IIC T4
