  Idler Sprockets

No Image


Idler Sprockets and Tensioners provide an efficient solution to maintaining smooth running drives, inhibiting the effects of chain stretch and ensuring chains don’t jump their drives.

These prefabricated Idler Sprockets employ a standard precision roller bearing. Available in a range of sizes with pins to suit, our range of Idler Sprockets are designed for use in conjunction with our CT Series Tensioners.

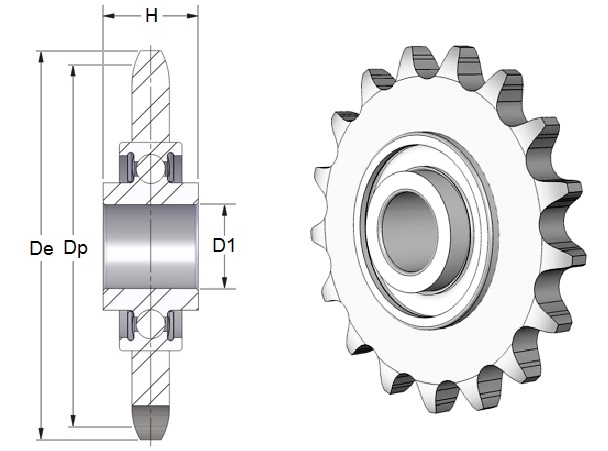

Model Pitch Teeth De Dp A D1 Bolt
CT15/CT18-06B-15 3/8" 15 49.5  45.8  5.3 10 10x55 9
CT15/CT18-08B-15 1/2"  15 65.9  61.1  7.2 10 10x55 9
CT27-08B-15 1/2"  15 65.9  61.1  7.2 12 12x80 9
CT27-10B-15  5/8" 15 83.2  76.4  9.1 12 12x80 10
CT27-12B-15 3/4"  15 99.8  91.6  11.1 12 12x80 11.1
CT38-10B-15  5/8" 15 83.2  76.4  9.1 20 20x100 14
CT38-12B-15 3/4"  15 99.8  91.6  11.1 20 20x100 14
CT38-16B-13  1" 13 117.7  106.1  16.2 20 20x100 16
CT45-20B-13  1-1/4" 13 147.5  132.7  18.5 20 20x130 18
