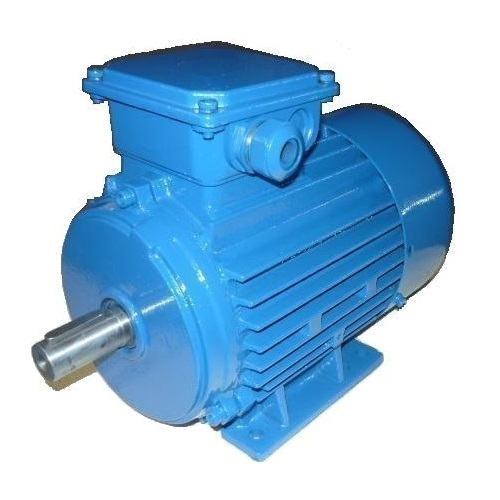

  Non-Sparking Electric Motors

No Image

Scope of Production

Rated Power (kW): 0.18 - 315
No. of Poles: 2, 4, 6, 8
Ratings: 380~415 Volts 50Hz (60Hz and other voltages are available)
Speed: 3000 - 750 RPM
Mountings: Foot / Flange
Standard Casting: Cast Iron


When an electric device is used in a location where explosive gas or steam is present, such as petrochemical plant, an explosion-proof motor must be used to prevent the possibility of an explosion. UMEB's explosion-proof motor ensures the safety required by domestic and international Standards; UMEB also maintaints the relevant certificates. Short leat times and Affordable prices from Romania and one of the world's largest electric manufacturers. ASK us today for all your explosion proof electric motors. Conforms to MEPS efficiency standards and IEC Ex Certificates available.


- International explosion-proof certificates (IEC Ex, etc.)
- Reliable insulation system that features excellent operation
- Solid structure that endures internal explosion
- High safety standards required by petrochemical plants
- Check our customised motor range for multispeed motors
- IP55, IP56, IP65 and IP66 Protection classes available
- Various mounting solutions including B3, B5, B14 B35 and B34
- Temperature class: T3, T4, T5
- Explosive Gas -
- Metric Frame supplied as standard as per IEC 60072 standard
- Terminal box available in both flameproof and increased security version. Located on top as per standard and turnable by 90° in 4 positions.
- Can be used with VVVF drive application & VSD use
- Low noise
- Australian sales support
- Buy from one of the most trusted motor manufactures in the world
- Ask us for customised requirements, specifications and colours directly
- Conforms to MEPS efficiency standards and IEC Ex Certificates available for all motors
- All motors are thoroughly tested to ensure their functionality before shipment
