  Flexible Duct Hose

No Image

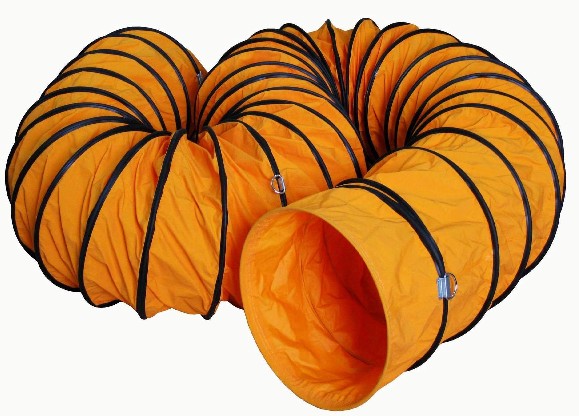

With the use of a very flexible PVC cloth tube as a body of the ducting, it is able to be used in many applications and is highly flexible. The addition of a high-carbon steel as a skeleton of the duct enables the duct to be wear resistant. This is suitable to be used with products which expands across any direction and around many environments including fire, acid, high temperatures and more.

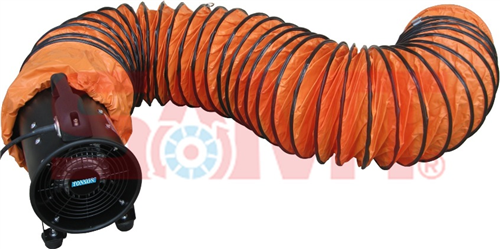

With the ventilation duct, it may allow a fan to be connected so that clean air may be transported to the required destination such as tunnel contructions. We have more flexible ducted hose systems which are compatible with heating and ventilation purposes, explosion proof ducts, negative pressure ducts and more.

Tehcnical Specifications



Size

Gross Weight (kg)

Net Weight (kg)

Dimensions (cm)

8''(200mm) × 5M

3.8

3.3

25 × 25 × 23

8''(200mm) × 10M

6.8

6.2

25 × 25 × 41

10''(250mm) × 5M

5.1

4.6

30 × 30 × 22

10''(250mm) × 10M

8.8

8

30 × 30 × 36

12''(300mm) × 5M

6

5.2

34 × 34 × 21

12''(300mm) × 10M

10.8

10

34 × 34 × 34.5

16''(400mm) × 5M

7.6

6.5

43 × 43 × 21

16''(400mm) × 10M

13.3

12

43 × 43 × 33

18''(450mm) × 5M

8.5

7.5

48 × 48 × 21

18''(450mm) × 10M

16.5

15.5

48 × 48 × 33

20''(500mm) × 5M

11.5

10.2

53 × 53 × 21

20''(500mm) × 10M

21.5

20

53 × 53 × 33

24''(600mm) × 5M

11.8

10.8

63 × 63 × 21

24''(600mm) × 10M

23.8

22.1

63 × 63 × 32

28''(700mm) × 5M

13.2

11.7

73 × 73 × 21

28(700mm) × 10M

14.8

13.8

73 × 73 × 33

32''(800mm) × 5M

16.2

14.7

83 × 83 × 21

32''(800mm) × 10M

31.7

30.2

83 × 83 × 32
