HTD Timing Belts
Classical Timing Belt
The most salient features of our classical timing belts are the high quality neoprene compounds, the extremely flexible tension cords made of glass fibre and the abrasion-resistant protective fabric. A certain level of oil, heat and cold resistance are standard features of Transmission Belts. Our Belts are bench mark of industry standards.
Pitch Widths
XL (Extra Light) 0.200" (1/5") 3/8"
L (Light) 0.357" (3/8") 1/2", 3/4" & 1"
H (Heavy) 0.500" (1/2") 1", 3/4", 1 1/2", 2" & 3"
XH (Extra Heavy) 0.875" (7/8") 2", 3" & 4"
XXH (Extra Extra Heavy) 1.125" (1.1/8") 2", 3" & 4"

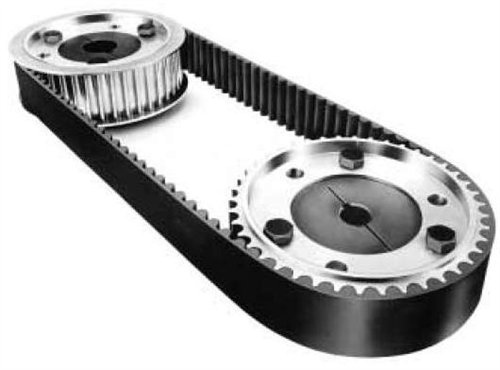

HTD Timing Belts
The next step in high performance drives, HTD allows higher torque and speeds. We supply a large range of pulleys to suit our HTD Belts. Pulleys are available in both pilot & taper bore. Clamp plates, to suit long length belting, are also available. Special pulleys in aluminium and steel are manufactured in our own factory.
Pitch Widths
3mm 15mm
5mm 15mm & 25mm
8mm 20mm, 30mm, 50mm & 85mm
14mm 40mm, 55mm, 85mm & 115mm
SAMT also can supply new generations of Optibelt OMEGA range, intensive development in Optibelt laboratories and confirmed by fields trials has resulted in the powerful Optibelt OMEGA range of timing belts. Years of experience with Optibelt ZR and Optibelt HTD belts have been applied to this new generation of belts. OMEGA timing belts set targets for synchronous power transmission and positioning drives. Complementing the Optibelt OMEGA range is the OMEGA HP (High Performance) & OMEGA HL (High Load).
The Optibelt OMEGA HP high performance timing belt was especially developed for heavily loaded, high speed drives. Improved materials and highly developed process engineering form the basis for this very high performance level.
On drives with high torque and low belt speed, Optibelt OMEGA HL timing belts surpass the capacity of Optibelt OMEGA HP by up to 15%. In addition, the design was optimised so that Optibelt OMEGA HL is much more suitable for drives with shock loading. When used for new drive designs in these types of application, Optibelt OMEGA HL achieves the highest possible functional reliability in combination with an optimum efficiency.
Pitch Widths
3mm 15mm
5mm 15mm & 25mm
8mm 20mm, 30mm, 50mm & 85mm
14mm 40mm, 55mm, 85mm & 115mm
SAMT is a specialist manufacturer, importer and Supplier of Power Transmission Products including all belting products. Special orders and customised requirements available. All Sizes available, customised can be supplied at short lead times. Machining services available for Boring and keying of pulleys to suit required sizes. Many Brands Available.
