Air Motor Valves
Valve Options (1/2", 3/4", 1", 1 1/4", 1 1/2", 2")
A range of bolt on Hand Control Valves and Remote Control Valves are available for use on all TONSON Piston Air Motors. Designed to completely eliminate all static friction, thereby reducing hysteresis effect and offering a very high degree of sensitive speed control. Suitable for applications where forward and reverse hand control is required, with spring centre to neutral position by a lever mechanism or controlled by air pilot signal..
Two control styles are manufactured:
i) Equal power and speed in both directions
ii) Biased to give a degree of control for hoisting applications.
|
|
 |
 |
|

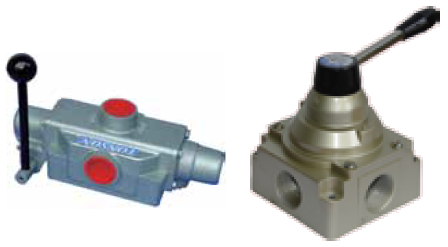

Hand Control Valve
|
Custom Hand Control Valve
|
Remote Control Valve
|
One pilot port, 1/4" on each end. Caps may be positioned with port at top, bottom or either side. The pilot pressure range is between 1.4 bar (20 psi) and 4.8 bar (70 psi), incresed pilot pressure gives increased speed.
Control Valves
