  Cross Tank Cross Tank (200L Drums)

No Image


No Image


Specifications

Cross Tank Mount Air air mixer is an excellent cost effective solution for mixing and blending of light to medium viscosity materials. Mounting Bracket will securely fit any steel drum. It can be easily moved from one tank to another.

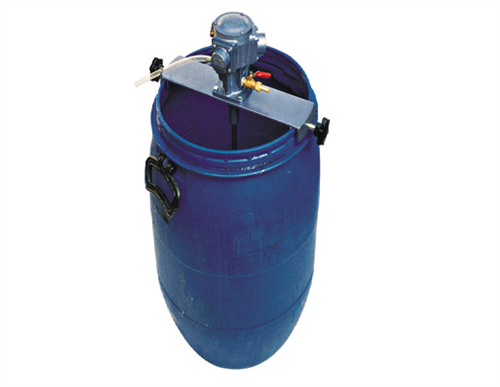

Cross tank mount
air mixer
  (Piston air motor)
Piston Air Motor Mixer
Piston Air Motor Mixer
Piston Air Motor Mixer
Piston Air Motor Mixer
Piston Air Motor Mixer
Model
TS-50C-M3
TS-50C-M4
TS-50C-M5
TS-50C-M6
TS-50C-M7
Power
1/4HP
1/3HP
1/2HP
3/4HP
1HP
Shaft
Ø16mm x 800mm
Ø25mm x 800mm
Propeller
6" x 1
6" x 1
8" x 2
8" x 2
10" x 1
8" x 1
8" x 1
12" x 1
Net Weight (kg)





Gross Weight (kg)
10.5

12
13
29.5

Many Propellers and Impellers available

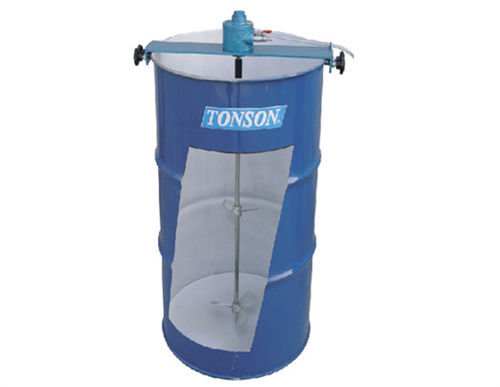

Cross tank mount
air mixer
  (Vane air motor)
Vane Air Mixer
Vane Air Mixer
Vane Air Mixer
Vane Air Mixer
Model
TS-50C-V2
TS-50C-V4
TS-50C-V6
TS-50C-V8
Power
0.93HP
1.71HP
4HP
5HP
Shaft
Ø16mm x 800mm
Ø20mm x 800mm
Ø25mm x 800mm
Propeller
6" x 2
6" x 1
8" x 2
10" x 2
8" x 1
Net Weight (kg)




Gross Weight (kg)


10.5




Cross tank mount
air mixer
  (Piston air motor) Reversible control
Pneumatic Mixer with Reversible Control
Pneumatic Mixer with Reversible Control
Pneumatic Mixer with Reversible Control
Pneumatic Mixer with Reversible Control
Cross tank mount air mixer
Model
TS-50CR-M3
TS-50CR-M4
TS-50CR-M5
TS-50CR-M6
TS-50CR-M7
Power
1/4HP
1/3HP
1/2HP
3/4HP
1HP
Shaft
Ø16mm x 800mm
Ø25mm x 800mm
Propeller
6" x 1
6" x 1
8" x 2
8" x 2
10" x 1
8" x 1
8" x 1
12" x 1
Net Weight (kg)





Gross Weight (kg)






Many Propellers and Impellers available


Cross tank mount
air mixer
   (Vane air motor) Reversible control








Model
TS-50CR-V2
TS-50CR-V4
TS-50CR-V6
TS-50CR-V8
Power
0.93HP
1.71HP
4HP
5HP
Shaft
Ø16mm x 800mm
Ø20mm x 800mm
Ø25mm x 800mm
Propeller
6" x 2
6" x 1
8" x 2
10" x 2
8" x 1
Net Weight (kg)








Gross Weight (kg)









Air Motors operate on air supply as the source of energy and has the following advantages over electric motors:

  • Complete Saftety.
  • 100% Explosion proof.
  • 24hr operation with no spark.
  • Simple Variable Stepless Speed Control.
  • Usable in harsh environments.
  • Instant reversibility.
  • Compact size
  • Cool running
  • Perfect mixing solution for any chemical or flammable environment.

Most Popular Models:

Model: TS-50C

Sizes Available: 0.18KW, 0.37KW & 0.75KW

  • Size: TS-50C-0.18
    Mixer Shaft Length (mm): 880mm
    Mixer Shaft Diameter (mm): 16
    Mixer Propeller Options: 6" x 1 OR 8" x 1
    Optional: Stainless Steel Shaft and Propeller
  • Size: TS-50C-0.37
    Mixer Shaft Length (mm): 880mm
    Mixer Shaft Diameter (mm): 16
    Mixer Propeller: 8" x 2
    Optional: Stainless Steel Shaft and Propeller
  • Size: TS-50C-0.75
    Mixer Shaft Length (mm): 880mm
    Mixer Shaft Diameter (mm): 20
    Mixer Propeller: 8" x 1 OR 10" x 1
    Optional: Stainless Steel Shaft and Propeller

Model: TS-50C-CS (With Contamination Shield)

As Atmospheric temperature is higher than air motor's internal temperature, relative humidity occurs causing sweats on the surface of the motor. Contamination shield is used to prevent sweats contaminating drum content.

  • Sizes: TS-50C-CS-0.18, TS-50C-CS-0.37 & TS-50C-CS-0.75
    (Same Options & Dimensions as TS-50C above)

Model: TS-50C-RL (With Revesible Control)

When mixing large volumes with light additives, reversible control could be installed on the motor for best mixing results.

  • Sizes: TS-50C-RL-0.18, TS-50C-RL-0.37 & TS-50C-RL-0.75
    (Same Options & Dimensions as TS-50C above)

Many Propellers and Impellers available

Call our Australian Head Office Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au for any enquiries or questions on all AirMixers.
