  Air Motors Technology   >   Air Mixers - Explosion proof   >   Closed Drum Air Mixers (200L Drums)


  Closed Drum Air Mixers (200L Drums)

No Image


No Image


No Image


Specifications

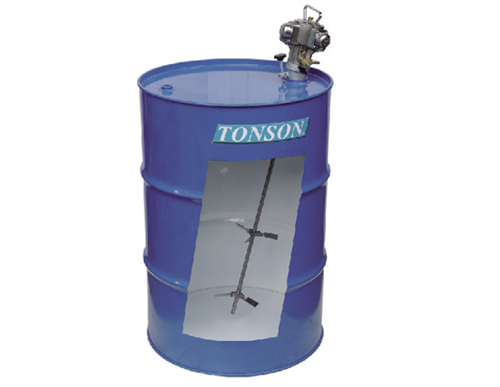

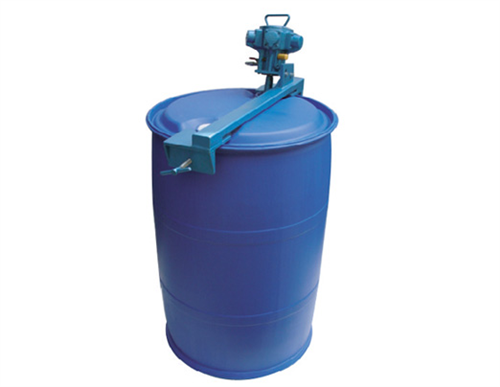

Bung Entry Air Mixer can be applied in mixing for all closed drums.Angle bracket is screwed into 2" bung opening then set screw is fastened to angle bracket after air mixer is placed into the drum. Specially designed stainless steel blade will fit easily, blades extend by centrifugal force when operating and retract when stopped.  We are a manufacturer of all types of Mixers for all applications and Industries. We can customise if required. Our standard line of mixers is comprehensive

Angle Bung Entry Air Mixer
(Piston Air Motor)
Air Mixer
Air Mixer
Angle bung entry air mixer
Angle bung entry air mixer

 Model

 TS-50T-M3

 TS-50T-M4

 TS-50T-M5

 TS-50T-M6

 Power

 1/4HP

 1/3HP

 1/2HP

 3/4HP

 Shaft

 Ø12.7mm x 840mm

Propeller

6" x 2

6" x 1

 6" x 1

 10" x 2

10" x 1

10" x 1

 Net Weight (kg)









 Gross Weight (kg)

5.5






Many Propellers and Impellers available

Angle bung entry air mixer (Vane air motor)
Model TS-50T-V2 TS-50T-v4 TS-50T-V6
Power 0.93HP 1.71HP 4HP
Shaft Ø12.7 x 840mm Ø16 x 880mm
Propeller 6" x 2 6" x 1 10" x 2
10" x 1
Net Weight (kg)
Gross Weight (kg)




Bung 2" Mount Helix Mixer

200 L (50g) Closed Drum 2" Bung-Mounted Helix Mixer is a unqiue design applicable for 2" bung-mounting and especially designed to reduce volatile fluid evaporation while maintaining purity of sealed drum contents. Large spiral-shaped blade mixes paints, resins, urethanes and epoxies efficiently. Particularly effective for semiconductor manufacturing process and mixing higher viscosity fluids. Stainless steel models are water base compatible. Teflon coating available for strong acid/alkali resistance. Contact us today for More information.

Bung-mounted helix mixer
Model
HM-3
HM-2
Power
1/4HP
1/8HP
Shaft
Ø25mm x 780mm
Ø25mm x 510mm
Propeller
75mm x 440mm
75mm x 220mm
Net Weight (kg)


Gross Weight (kg)



Many Propellers and Impellers available

Air Motors operate on air supply as the source of energy and has the following advantages over electric motors:

  • Complete Saftety.
  • 100% Explosion proof.
  • 24hr operation with no spark.
  • Simple Variable Stepless Speed Control.
  • Usable in harsh environments.
  • Instant reversibility.
  • Compact size
  • Cool running
  • Perfect mixing Solutions for any chemical or flammable environment.

Popular Closed Drum Air Mixers:

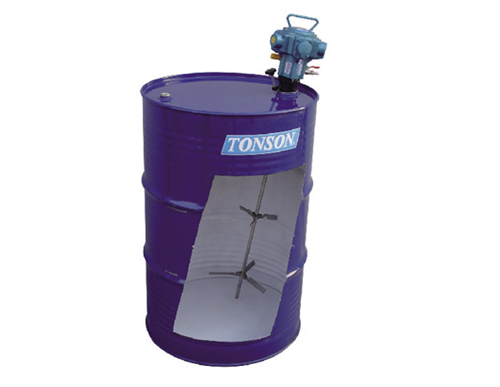

Model: TS-50T

Sizes Available: 0.18KW & 0.37KW

  • Size: TS-50T-0.18
    Mixer Shaft Length (mm): 880
    Mixer Shaft Diameter (mm): 12.7
    Mixer Propeller Options: 6" x 2 (Stainless steel propeller standard)
    Optional: Stainless Steel Shaft
  • Size: TS-50T-0.37
    Mixer Shaft Length (mm): 880mm
    Mixer Shaft Diameter (mm): 12.7
    Mixer Propeller: 6" x 1 OR 10" x 1 (Stainless steel propeller standard) Optional: Stainless Steel Shaft and Propeller

Many Propellers and Impellers available

Call our Australian Head Office Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au for any enquiries or questions on customised Mixers.
